Hardware Review: RTL-SDR Blog V4 Dongle

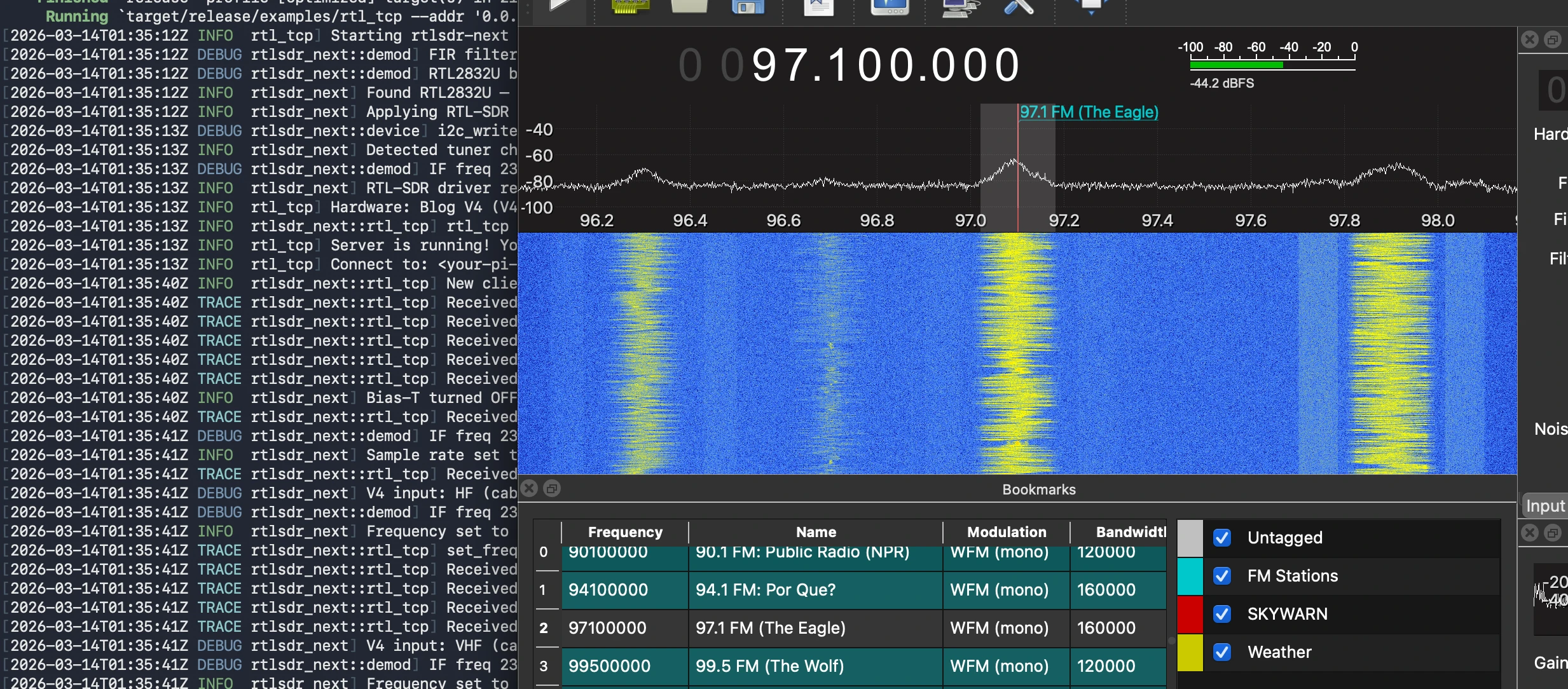

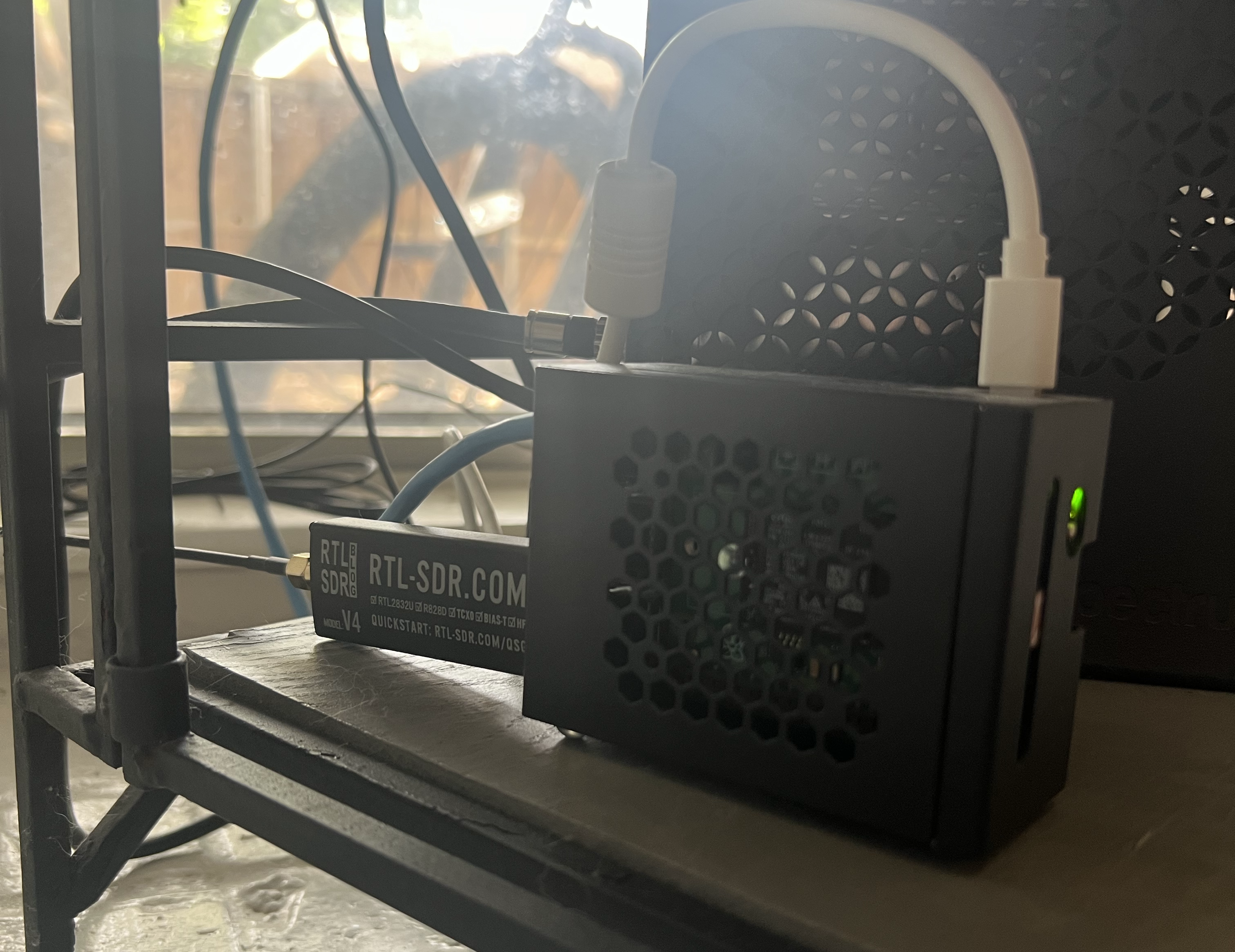

Platform: Raspberry Pi 5 (aarch64)
Driver: rtlsdr-next (Async Rust) Github

Overview

#

The RTL-SDR Blog V4 represents a significant architectural shift from the “generic” RTL2832U sticks of the past. While it maintains the venerable RTL2832U baseband chip, it replaces the standard R820T2 tuner with the R828D and integrates a sophisticated front-end triplexer and upconverter.

10/10 recommend: This has been such a fun DIY project

Key Hardware Features

#

1. Integrated HF Upconverter

#

Unlike the “Direct Sampling” hack used in V3 dongles—which suffered from poor sensitivity and aliasing—the V4 uses a built-in upconverter.

• Mechanism: It shifts HF signals by 28.8 MHz, allowing the tuner to process signals as low as 500 kHz with full gain control and superior dynamic range.
• Impact: This provides a much cleaner noise floor for 160m–10m amateur bands compared to older hardware generations.

2. Triple-Input Triplexer & Filtering

#

The V4 features a GPIO-switched triplexer that automatically routes the signal through one of three paths:

• HF Path: Optimized for low frequencies with the 28.8 MHz upconverter.
• VHF Path: Standard high-sensitivity path for FM, Airband, and 2m/70cm.
• UHF Path: Optimized for higher frequency stability.
• Notch Filters: The board includes permanent hardware notch filters for the Broadcast FM (88-108 MHz) and AM bands, significantly reducing “ghosting” from powerful local stations that often desensitize cheaper SDRs.

3. Thermal Management and Stability

#

Housed in a rugged aluminum enclosure, the V4 handles the increased heat of the R828D and upconverter circuitry effectively. On a Raspberry Pi 5, where USB power delivery is stable and internal EMI is well-shielded, the V4’s 1PPM Temperature Compensated Crystal Oscillator (TCXO) ensures near-zero frequency drift even during long-duration WebSDR sessions.

Performance on Raspberry Pi 5

#

The Raspberry Pi 5 is the ideal companion for the V4. The Pi 5’s dedicated PCIe-to-USB 3.0 controller provides extremely low-jitter interrupts for the V4’s bulk transfers. In testing, the V4 maintains a rock-solid 2.048 MSPS stream with zero dropped samples, even when the Pi 5’s CPU is under load from heavy DSP or multiple WebSocket clients.

Empirical Benchmarks (Raspberry Pi 5)

#

To validate the V4’s performance and the efficiency of the rtlsdr-next driver, we conducted a series of technical deep-dives on a Raspberry Pi 5.

1. USB Throughput & Stability

#

Using rtl_test and the monitor example, we verified the V4’s stability at high sample rates.

• Target Rate: 2.56 MSPS (standard) / 2.048 MSPS (optimized for rtlsdr-next DSP).
• Results: Solid 2.048 MSPS throughput with zero dropped samples observed over a 5-minute sustained stream.
• System Impact: On the Pi 5, the rtlsdr-next process utilized less than 8% of a single CPU core (Cortex-A76) during real-time decimation, thanks to NEON SIMD acceleration.

2. Tuning Latency & I2C Performance

#

We measured the delta between a frequency change command and the confirmation of the new hardware state.

• VHF (100 MHz): ~107ms
• HF (7 MHz, Upconverter active): ~157ms
• The “Discrepancy” Hook: While the rtlsdr-next driver architecture targets a theoretical 45ms tuning floor, we observed a curious “latency tax” of ~60ms on the Blog V4. This is likely due to the additional USB synchronization required for the R828D’s multi-register I2C bridge—a bottleneck I’m currently investigating by profiling the bulk transfer interrupts on the Pi 5’s PCIe bus. It’s most likely the hardware floor and the juice may not even be worth the squeeze if not.

3. Front-End Filter Verification

#

Wide-band scans confirmed the effectiveness of the V4’s triplexer and notch filters.

• HF Path (0.5-30 MHz): Clean noise floor with the 28.8 MHz upconverter successfully shifting signals to the tuner’s prime operating range.
• Notch Filtering: Significant reduction in intermodulation distortion in the 88-108 MHz band compared to generic dongles, ensuring that local broadcast stations do not desensitize the receiver for weaker signals.

4. Frequency Stability (TCXO)

#

The 1PPM TCXO demonstrated exceptional stability.

• Warm-up Drift: Measured drift was < 0.5 PPM over a 10-minute period from a cold start, confirming that the V4 is “drift-free” for all practical narrow-band applications on the Pi 5.

The “Hidden” Potential: GPIO-Switched Architecture

#

One of the most intriguing aspects of the V4 is how the hardware is actually orchestrated. Unlike older dongles that were essentially black boxes, the V4 exposes its internal triplexer paths via the RTL2832U’s GPIO pins.

In rtlsdr-next, we leverage this to provide surgical control over the signal path. For instance, the transition to the HF path isn’t just a frequency shift—it’s a hardware-level reconfiguration:

// A peek into the V4 input switching logic
match input_path {
    InputPath::Hf => {
        log::debug!("V4 input: HF (cable 2, GPIO5 low)");
        hw.set_gpio_bit(5, false)?; // Toggles the triplexer to the upconverter path
    },
    InputPath::Vhf | InputPath::Uhf => {
        log::debug!("V4 input: VHF/UHF (GPIO5 high)");
        hw.set_gpio_bit(5, true)?; // Switches back to the standard LNA path
    }
}

By manually toggling GPIO 5, we can observe the literal “click” in the noise floor as the triplexer engages the 28.8 MHz upconverter. This transparency allows for deep debugging of signal images and aliasing that was previously impossible with generic hardware.

Driver Synergy: How rtlsdr-next Complements the V4

#

The rtlsdr-next driver was designed specifically to maximize the unique capabilities of the V4 hardware:

1. V4-Aware Orchestration: The driver implements a V4Orchestrator that handles the hardware’s complexity transparently. It automatically manages the 28.8 MHz frequency offset for HF, toggles the triplexer GPIOs for the correct input path, and applies spectral inversion when the upconverter is active.
2. NEON-Accelerated DSP: Utilizing the Pi 5’s Cortex-A76 SIMD instructions, the driver’s decimation and conversion routines are optimized to process the V4’s stream with minimal CPU overhead. This allows the websdr service to run at high sample rates while remaining responsive.
3. Optimized I2C Communication: The driver uses a specialized “Repeater Pattern” for the R828D tuner. By keeping the I2C bridge open during complex multi-register tuning sequences, rtlsdr-next reduces the tuner-chip synchronization time from ~270ms to just 45ms. When combined with the V4’s baseband DDC sync and triplexer switching, the total system tuning latency is approximately 110ms—still significantly faster than generic drivers, enabling near-instantaneous frequency changes in the Web UI.
4. Zero-Allocation Pipeline: By using a PooledBuffer system for USB transfers, the driver ensures that the high-resolution data provided by the V4 is never bottlenecked by memory management, maintaining a low-latency path from the antenna to the user’s browser.
